Disclaimer
The purpose of this guide is to give an example as to how to set up a barcode scanner so that it works with Movilitas Mobile. The descriptions provided are not exhaustive and are not meant to be exhaustive and do not attempt to cover all models from the providers or all possible setup scenarios that may be relevant to your goals or particular needs.
While we endeavor to keep the information up to date and correct, Movilitas.Cloud makes no representations or warranties of any kind, express or implied about the completeness, accuracy, reliability, suitability or availability with respect to the information covered in this guide for any purpose.
Procedure
Set up a Rayoungtek N77 scanner to use it with Movilitas Mobile.
1. Go to Scanner app --> Setting --> Broadcast device.
2. Turn off the NXX toggle button.
3. Turn on the CUSTOM toggle button.
4. Set the following:
- Action: com.ionic.datawedge.ACTION
- StringName: data
- BytesName: barcodeBytes

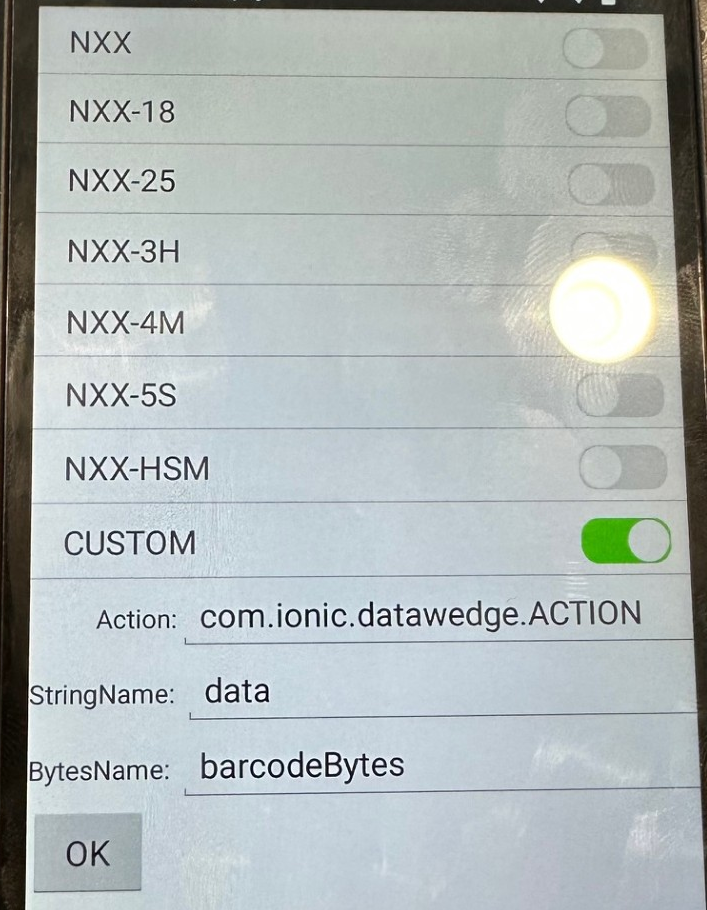

Example:
5. Tap OK.
6. Scroll up and set Output Mode to Broadcast Mode.
7. Tap OK and exit.
The attached video guides you through the procedure.
Next Step
You can use the physical scan button and Movilitas.Cloud will receive the scanned barcode data as expected.
