You can use the Manufacturer V2 API to integrate the shopfloor and the enterprise resource planning (ERP) systems with the Serialized Manufacturing application.

The Manufacturer V2 API uses the Representational State Transfer (REST) standard to interact with other systems.

The Manufacturer V2 API is an extension of the Serialized Manufacturing application of Movilitas.Cloud that enables you to send requests from external systems to the application.

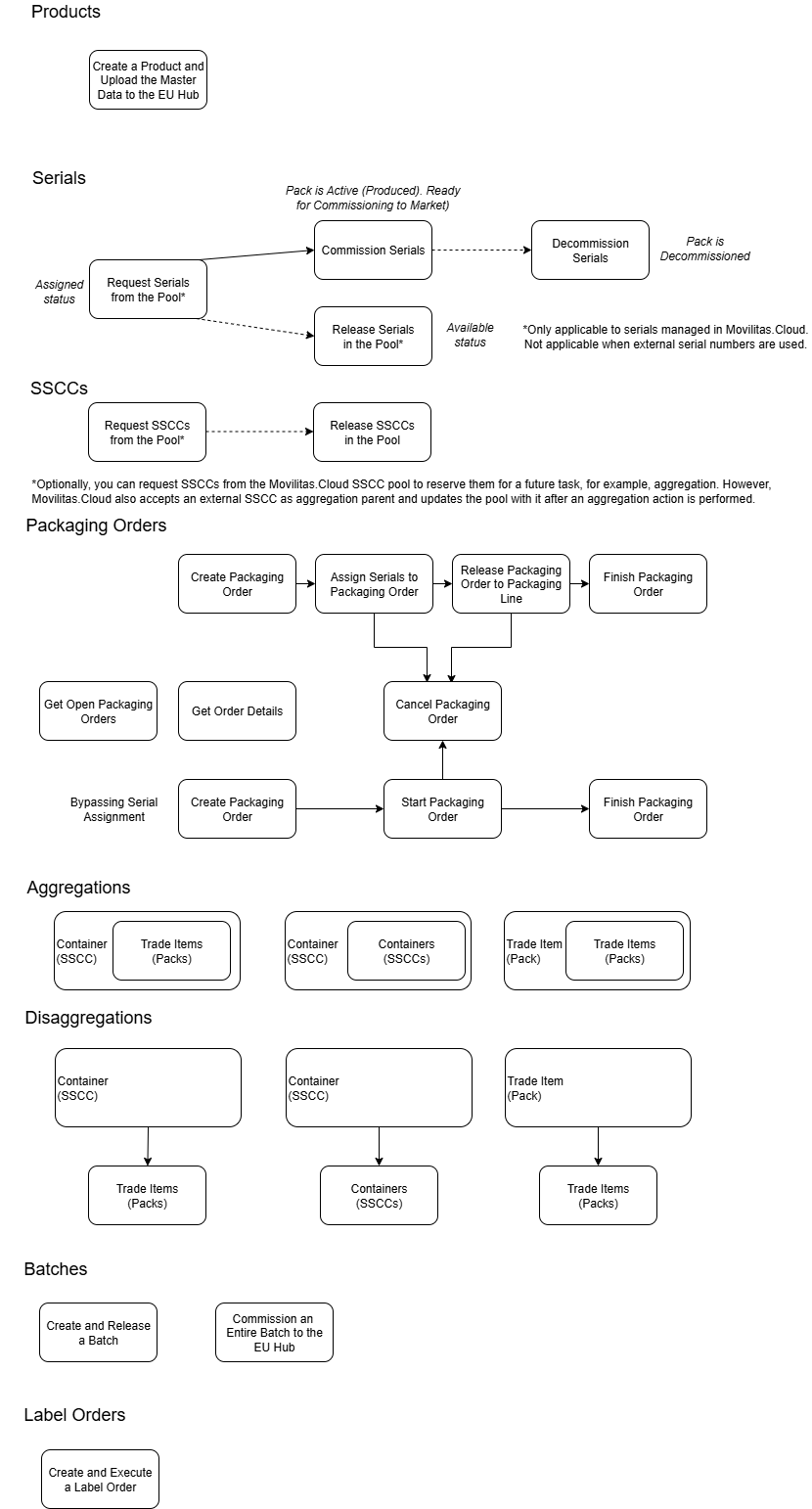

The following figure provides an overview of all the requests that you can send by using the Manufacturer V2 API:

This article describes how to commission an entire batch to the EU Hub in the Serialized Manufacturing application using the Manufacturer V2 API.

API Tool to Use

In this document, we provide examples by using the cURL command-line tool. To send the API request, you can find a lot of user-friendly REST API tools on the Internet, for example, Postman.

Before You Begin

1. You must enable the Serialized Manufacturing application.

2. You must create an API key and secret.

3. You must create a shopfloor channel with the Manufacturer V2 API source. You will need the channel key for your requests.

4. You must configure the Serialized Manufacturing application and the channels required to connect to external systems.

5. You must have the authentication token to send requests over API. Select one of the following ways:

• Apply a dynamic token. Send an authentication request over the Authentication API. For more information about the Authentication API, open the Tenant Dashboard in Movilitas.Cloud, select API keys, and choose Authentication API Documentation. Also, see Authentication Request.
• Apply a static token. Generate a static token for your previously created API key.

For more information, see Configuring the Movilitas.Cloud APIs.

Procedure

1. Use the POST method and the following URL:

https://api-acc.movilitas.cloud/v1/manufacturer/v2/api/batches/commission

2. For the header, define the content type (JSON), the authentication token, and the channel key.

The token can be given in one of the following ways:

• As x-access-token header.
• As Authorization header by using the Bearer schema.

Header Option 1

Header Option 2

3. In the body of the request, define the parameters and their values based on the table below.

4. Send the request. The entire batch of the product is commissioned to the EU Hub. All items are put into Commissioned status in Movilitas.Cloud.

If the tenant is a repacker, Movilitas.Cloud supports two scenarios:

• Scenario A: The repacker does not perform the repackaging in Movilitas.Cloud, so the repackaging service is not activated in the Serialized Manufacturing application settings. The application includes the original product details in the commissioning request sent to the EU Hub (see the “sourceRepackBuffer” part of the request):
  • The original product code scheme is always GTIN.
  • The non-serialized origin product code is taken from the product master data settings that must be specified in advance.
  • The original batch value is the one given with the packs to be commissioned.
• Scenario B: The repacker performs the repackaging in Movilitas.Cloud, so the repackaging service is activated in the Serialized Manufacturing application settings. The items to be commissioned to the EU Hub come from a label (printing) order with origin fields:
  • The logic takes the origin product code and origin batch from the label order and includes the origin values in the commissioning request towards the EU Hub (see the “sourceRepackBuffer” part of the request).
  • If the origin product code is a custom code in the label order, the application finds the GTIN linked to the custom code in the system and uses the GTIN as the old (sourced) product in the commissioning request towards the EU Hub.

Sample cURL Request

curl -X POST \
  https://api-acc.movilitas.cloud/v1/manufacturer/v2/api/batches/commission \
  -H 'Content-Type: application/json' \
  -H 'x-access-token: eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJrZXkiOiKzX2FqazQyS3RLQWhHdiE4TUZtY1Q2Uzh' \
  -H 'x-channel-key: Ky1SpfEXmjj05fW3USBFD3pgoEi9AQ29Atsnj4Zy' \
  -d '{
    "product_code_schema": "GTIN",
    "product_code": "02026041310005",
    "batch": "MCS36041",
    "market_id": "EU",
    "manufacturer_mah_tag": "cloud-mah"
}'

Sample Response (Success 200)

{
    "success": true,
    "message": "Batch successfully commissioned"
}

Error Types and Resolution

This section lists some of the most general error types when sending the request.
