You can generate the Data Matrix barcode by giving the trade items details.


Procedure

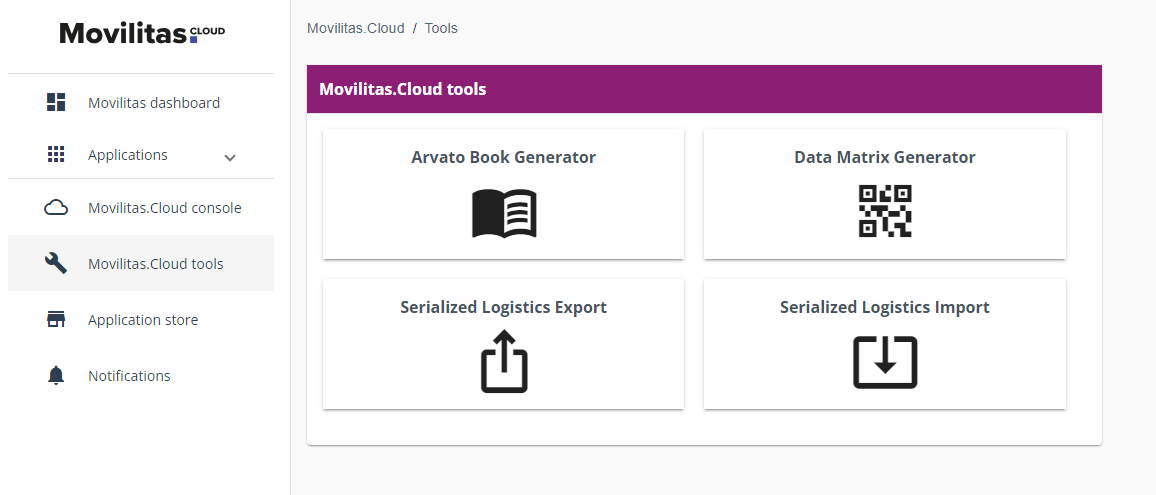

1. Select the Movilitas.Cloud tools option in the left menu. The application displays the Movilitas.Cloud Tools page.


Example:

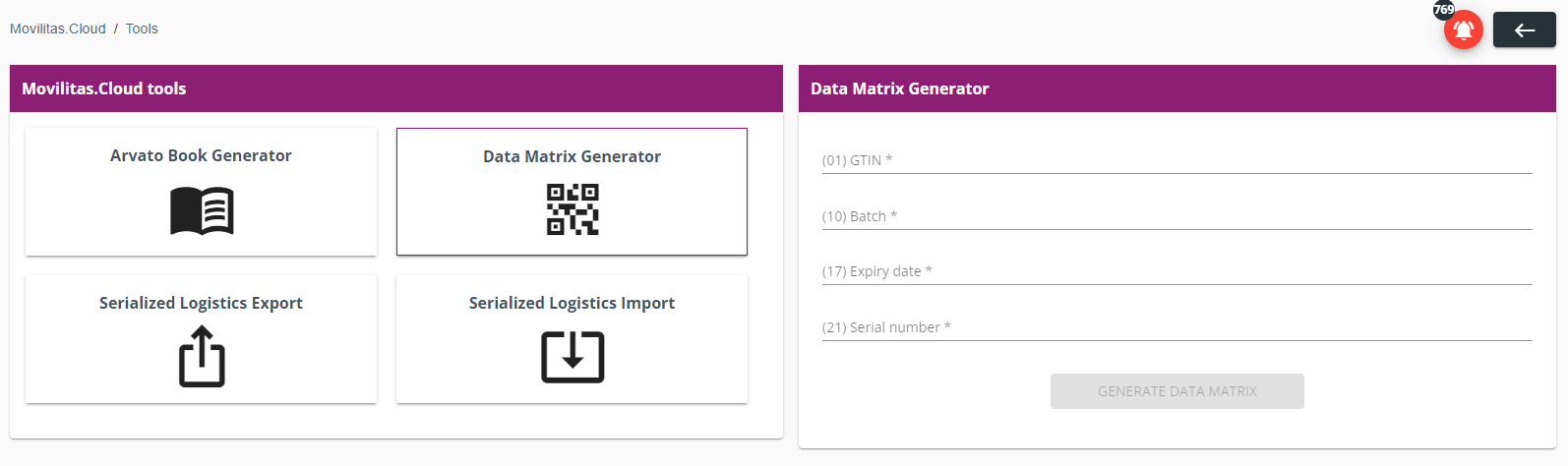

2. Select Data Matrix Generator. The application displays the generator.


Example:

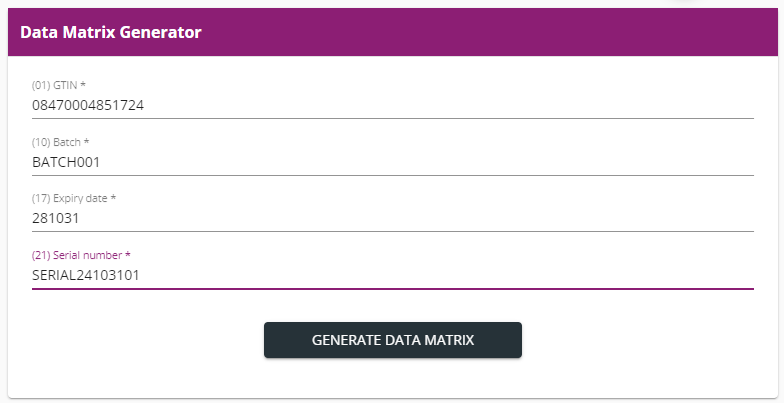

3. Enter the trade item details.

  • (01) GTIN
  • (10) Batch
  • (17) Expiry date
  • (21) Serial number


The application identifier (AI) is in brackets. A built-in validator helps you confirm the entered data is GS1-compliant.


Example:



4. Click Generate Data Matrix.

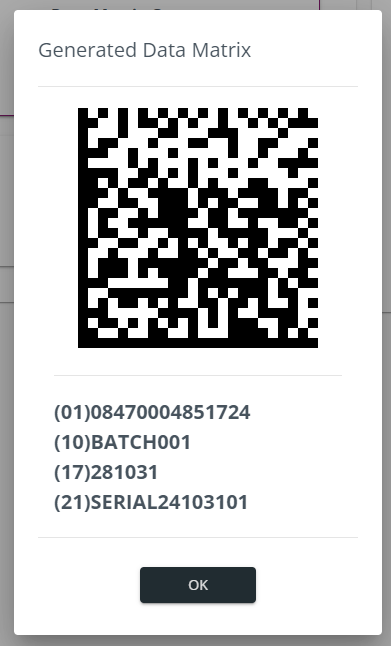

The application displays the Data Matrix barcode in a pop-up.


Example:
